Hardware

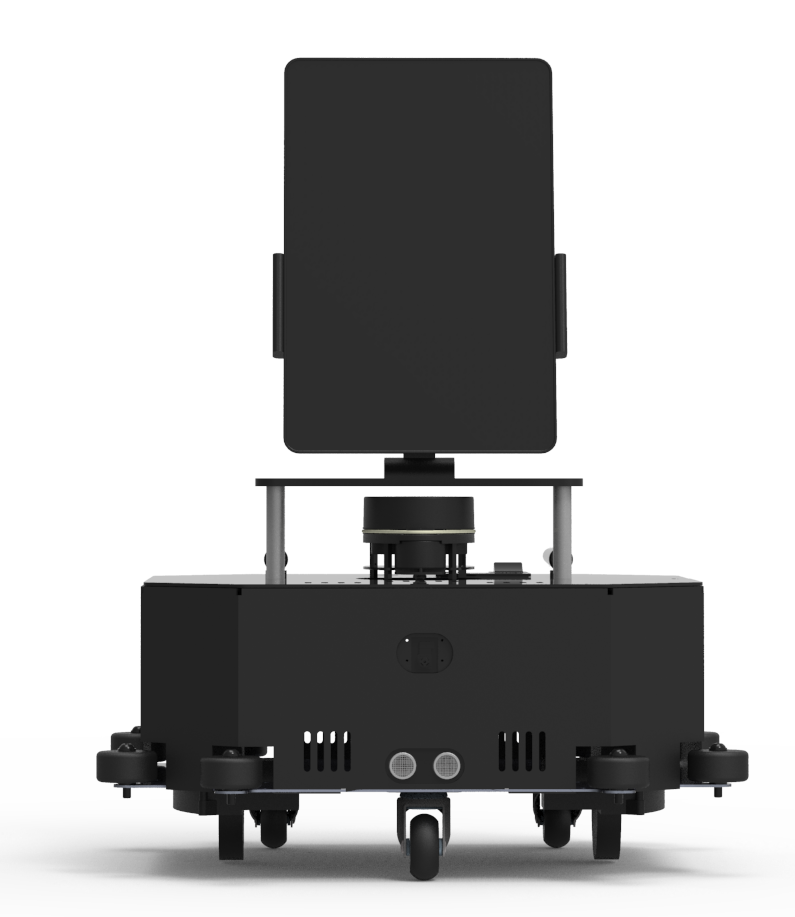

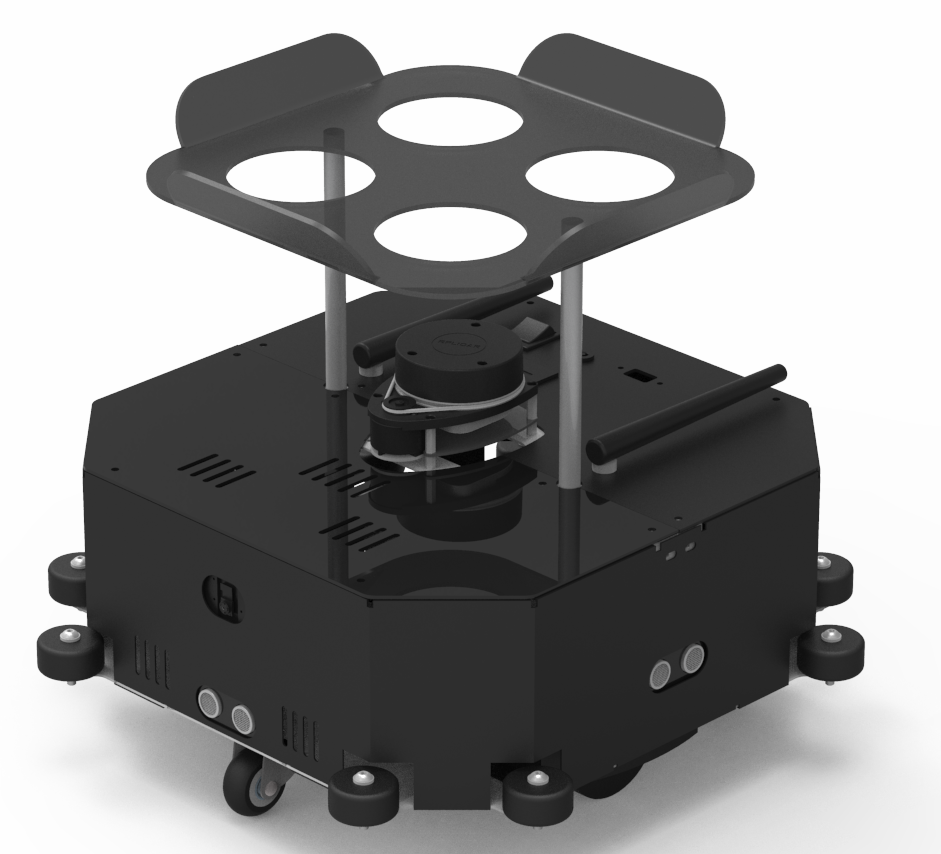

Follow Along: About ZETABOT and its hardware

- Describes the Zetabot and its hardware.

- You can understand the big concept of Zetabot.

Ability to converge artificial intelligence with software, robots, and content

Korean, english and Mathematics-oriented classes: Do students want them? And would the world want it?

As an alternative, do classes such as IOT technology create the future?
AI education is simply teaching ‘IoT technology’, especially leaving the female students not interested
Inability to adapt to various student preferences and excessive simplicity of AI education, results in no educational future technology experience

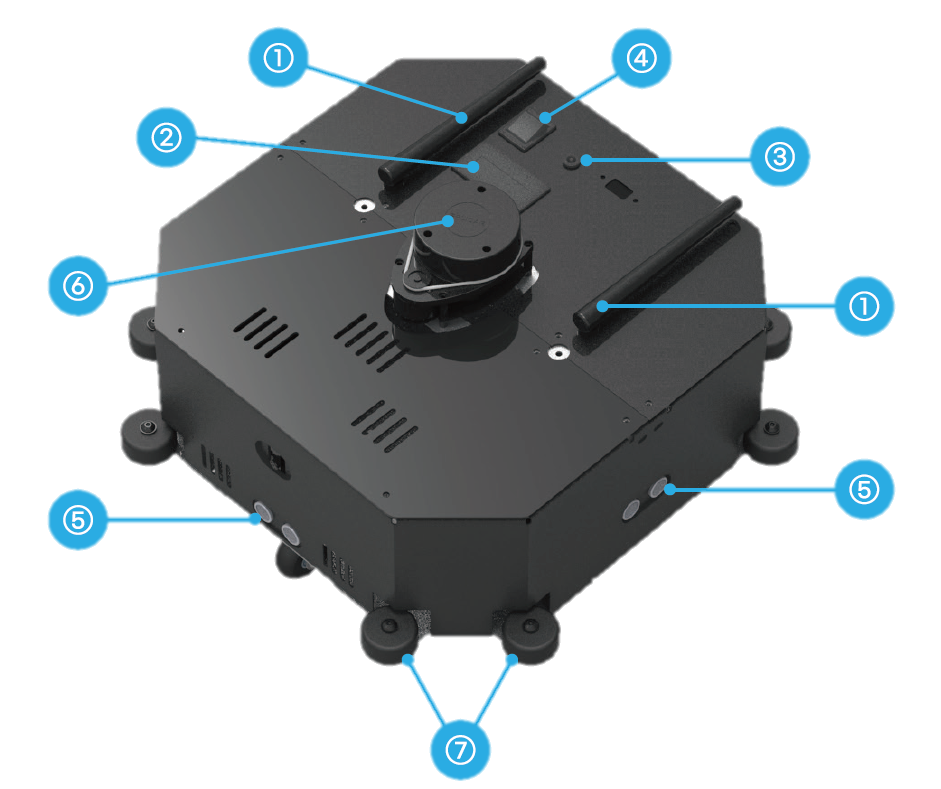

① Antenna ② Battery indicator ③ Charging port ④ Power button ⑤ Ultrasonic sensor ⑥ RP LIDAR ⑦ Bumper

These are the main parts of Zetabot.

Product Picture	Product Description

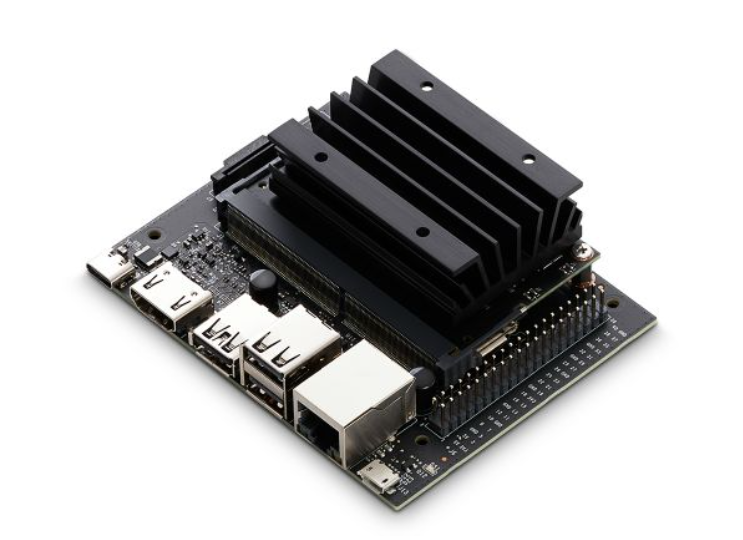

	Jetson Nano GPU : 128-core Maxwell CPU : Quad-core ARM A57 Memory : 4GB 64bit LPDDR 25.6GB/s Storage : Micro SD

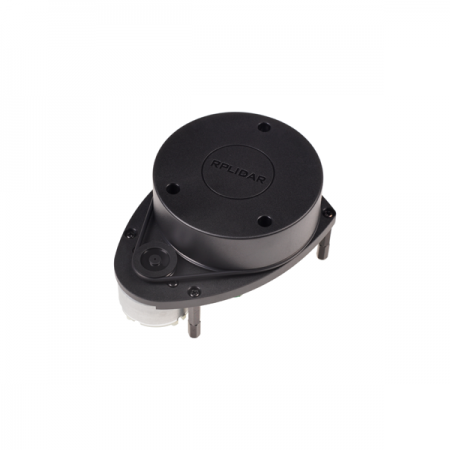

	RP LIDAR 5.5hZ(2000 sample/s) 6meter measurement 360 degree scanA1M8

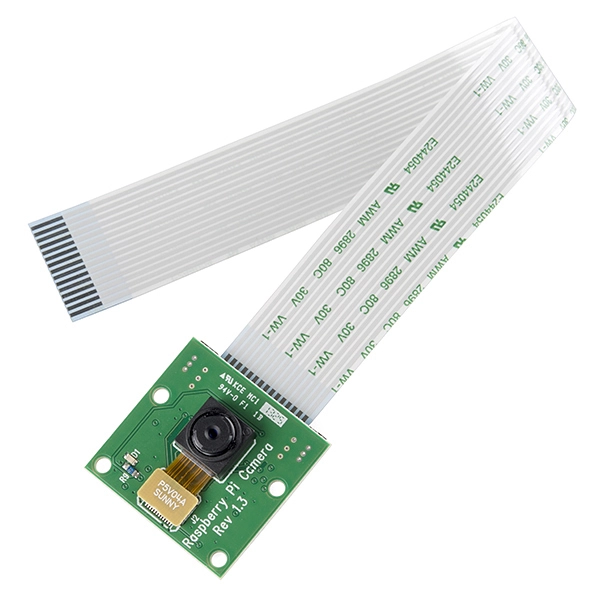

	Camera Module Resolution : 8mega pixel Sensor : Sony IMX 219 PQ CMOS

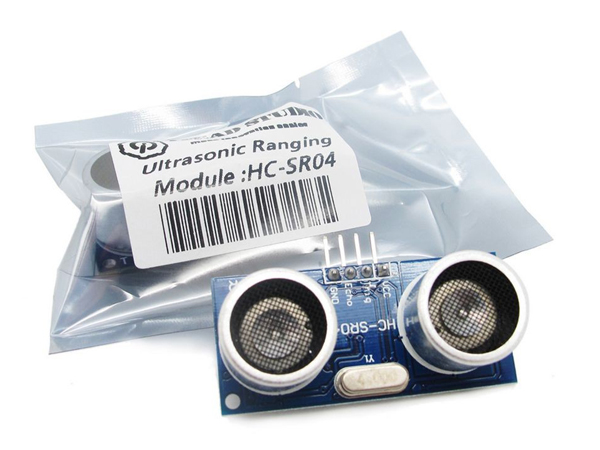

	Close range object detection sensor ⁠Model : HC-SR04 Power : 5V Current : 2mA Ranging Distance : 2cm ~ 450cm

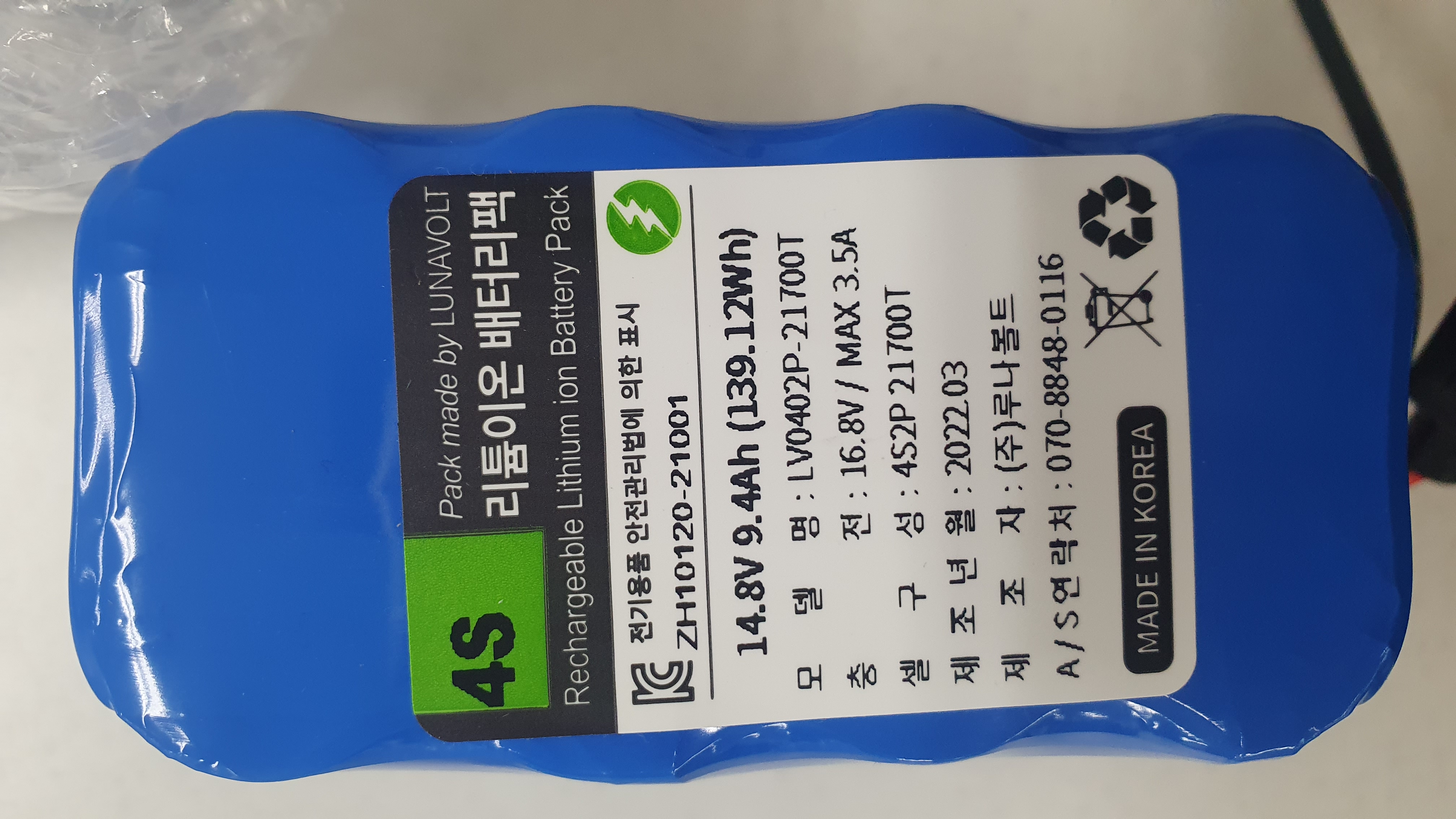

	Lithium ion battery pack Charge : 16.8V / 3.5A Output: 14.8V / 9.4Ah (139.12Wh)

This is a simple block diagram of Zetabot.

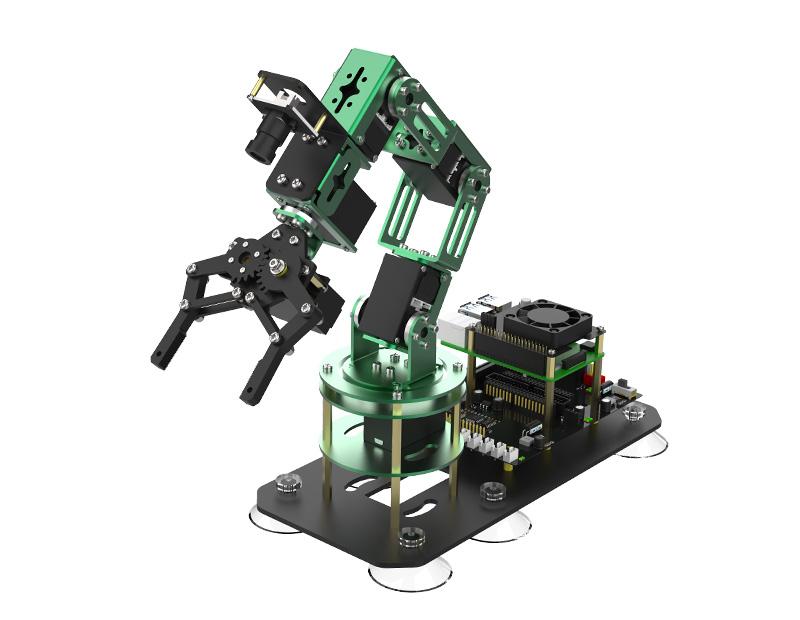

This is a description of the 6-axis DOF bot.
