Detecting object distance using Depth Camera and SSD-Mobilenet

Follow along: Detecting object distance using Depth Camera and SSD-Mobilenet

The program launching process along with parameter settings are all simplified and set up on the Jupyter Notebook Environment.
  • Open the 01_09_detect_object_and_calculate_distance.ipynb Jupyter Notebook.
  • This code is output by applying numpy and matplotlib.
  • This code uses a pre-trained model.
(The Jetson Board used for these examples are => Jetson Nano)

  • 01_09_detect_object_and_calculate_distance.ipynb

  • Running the cell code.
    Ctrl + Enter

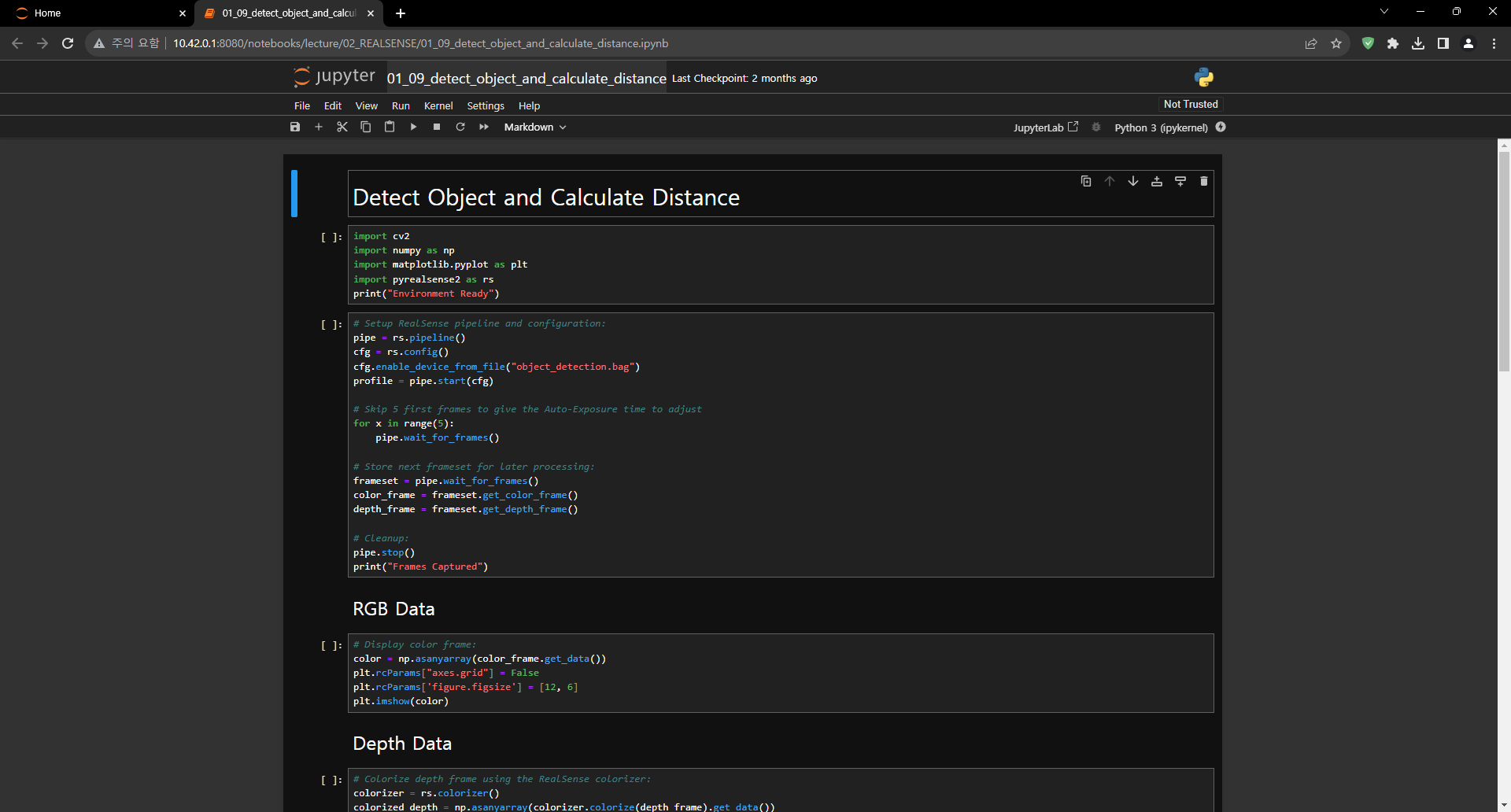

  • Load the modules needed to run your code.

import cv2
import numpy as np
import matplotlib.pyplot as plt
import pyrealsense2 as rs
print("Environment Ready")

  • Load the bag file with data and realsense pipeline.

# Setup RealSense pipeline and configuration:
pipe = rs.pipeline()
cfg = rs.config()
cfg.enable_device_from_file("object_detection.bag")
profile = pipe.start(cfg)

# Skip 5 first frames to give the Auto-Exposure time to adjust
for x in range(5):
    pipe.wait_for_frames()

# Store next frameset for later processing:
frameset = pipe.wait_for_frames()
color_frame = frameset.get_color_frame()
depth_frame = frameset.get_depth_frame()

# Cleanup:
pipe.stop()
print("Frames Captured")

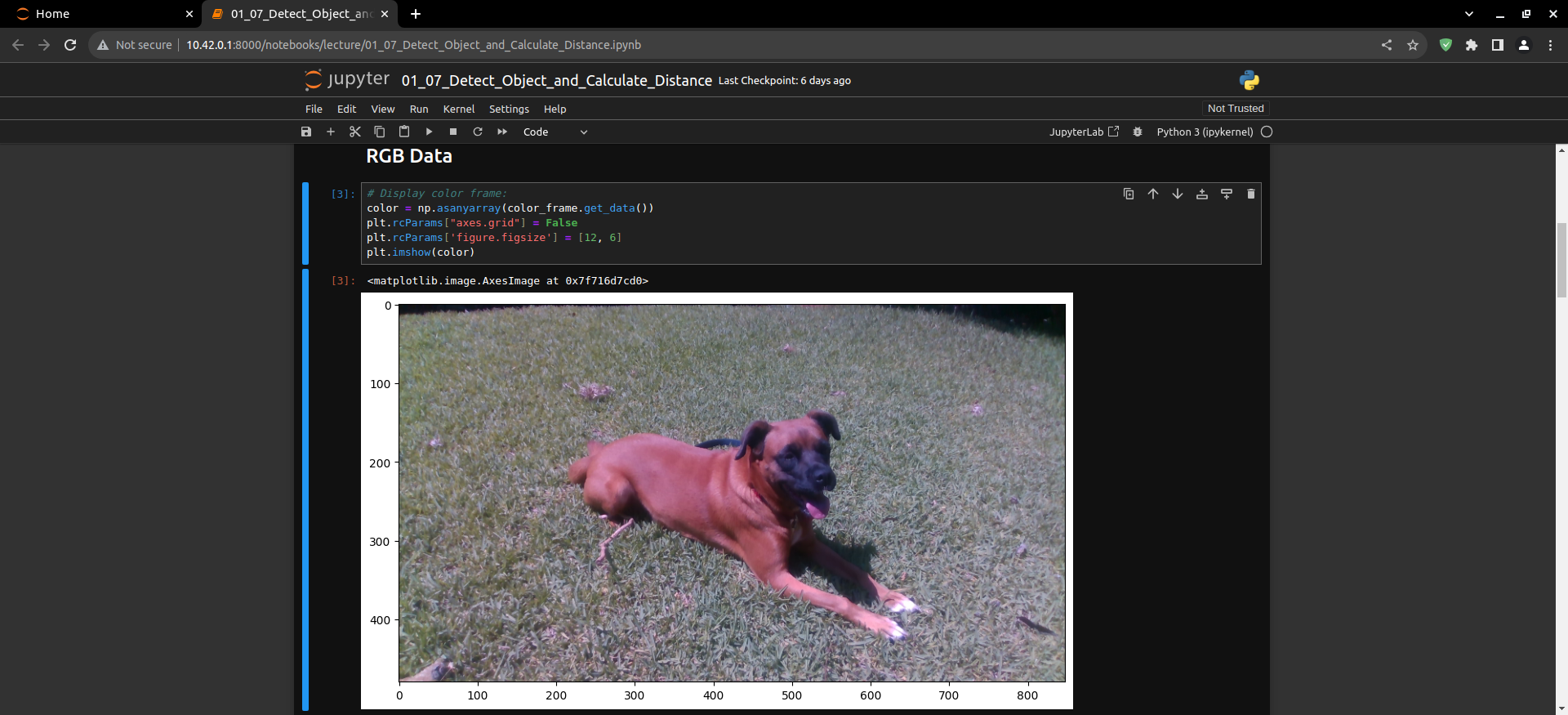

  • Display the loaded image in rgb color.

# Display color frame:
color = np.asanyarray(color_frame.get_data())
plt.rcParams["axes.grid"] = False
plt.rcParams['figure.figsize'] = [12, 6]
plt.imshow(color)

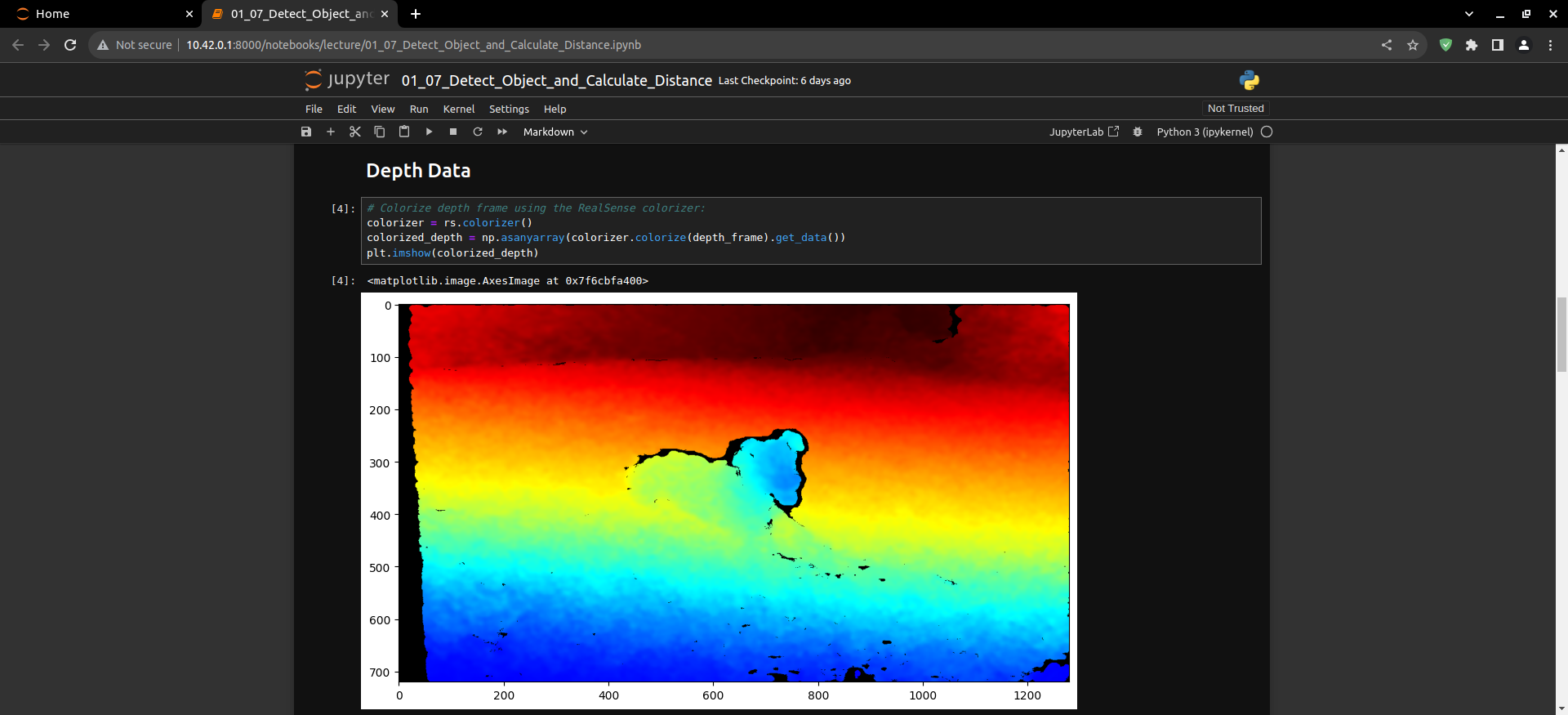

  • Display the loaded image in colorized depth.

# Colorize depth frame using the RealSense colorizer:
colorizer = rs.colorizer()
colorized_depth = np.asanyarray(colorizer.colorize(depth_frame).get_data())
plt.imshow(colorized_depth)

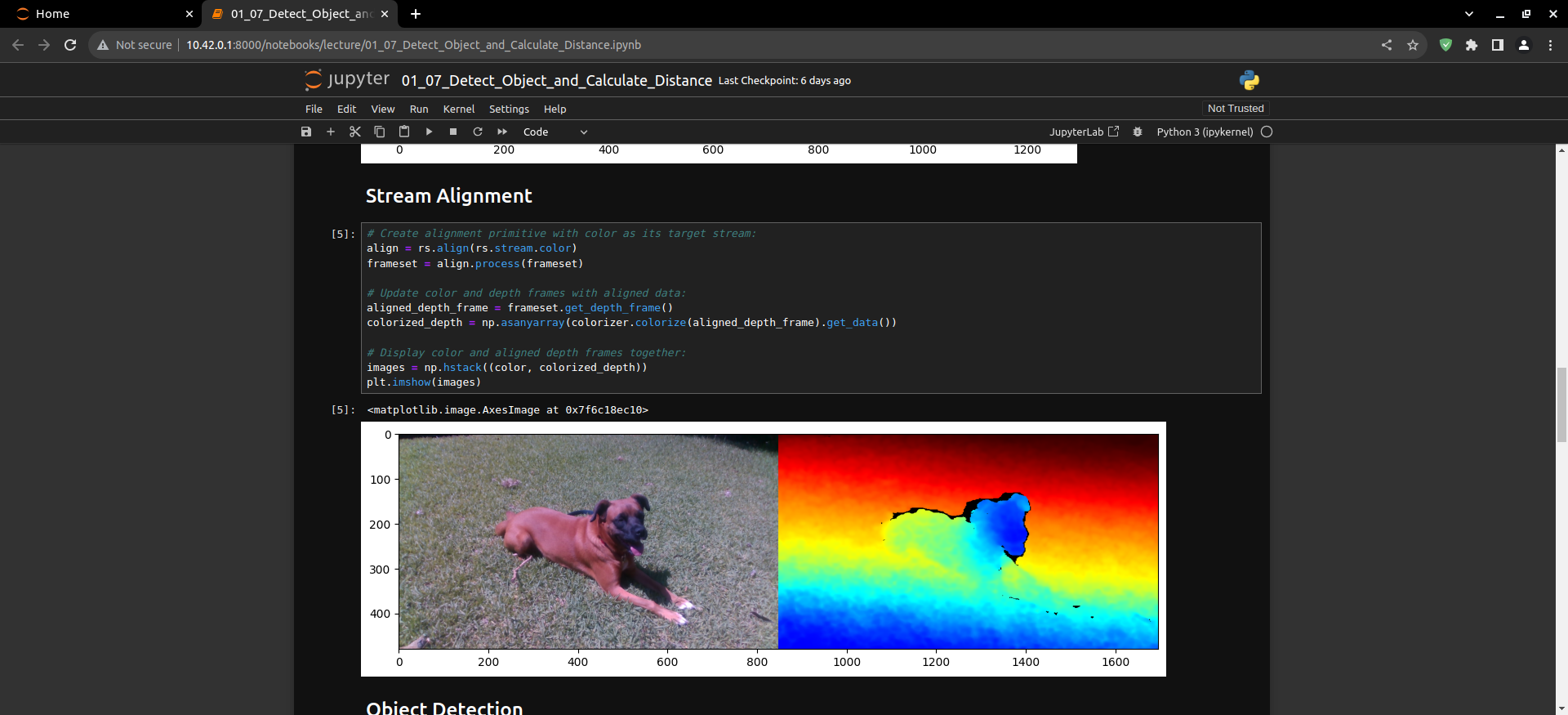

  • Display an image by comparing an RGB color image to a color depth image.

# Create alignment primitive with color as its target stream:
align = rs.align(rs.stream.color)
frameset = align.process(frameset)

# Update color and depth frames with aligned data:
aligned_depth_frame = frameset.get_depth_frame()
colorized_depth = np.asanyarray(colorizer.colorize(aligned_depth_frame).get_data())

# Display color and aligned depth frames together:
images = np.hstack((color, colorized_depth))
plt.imshow(images)

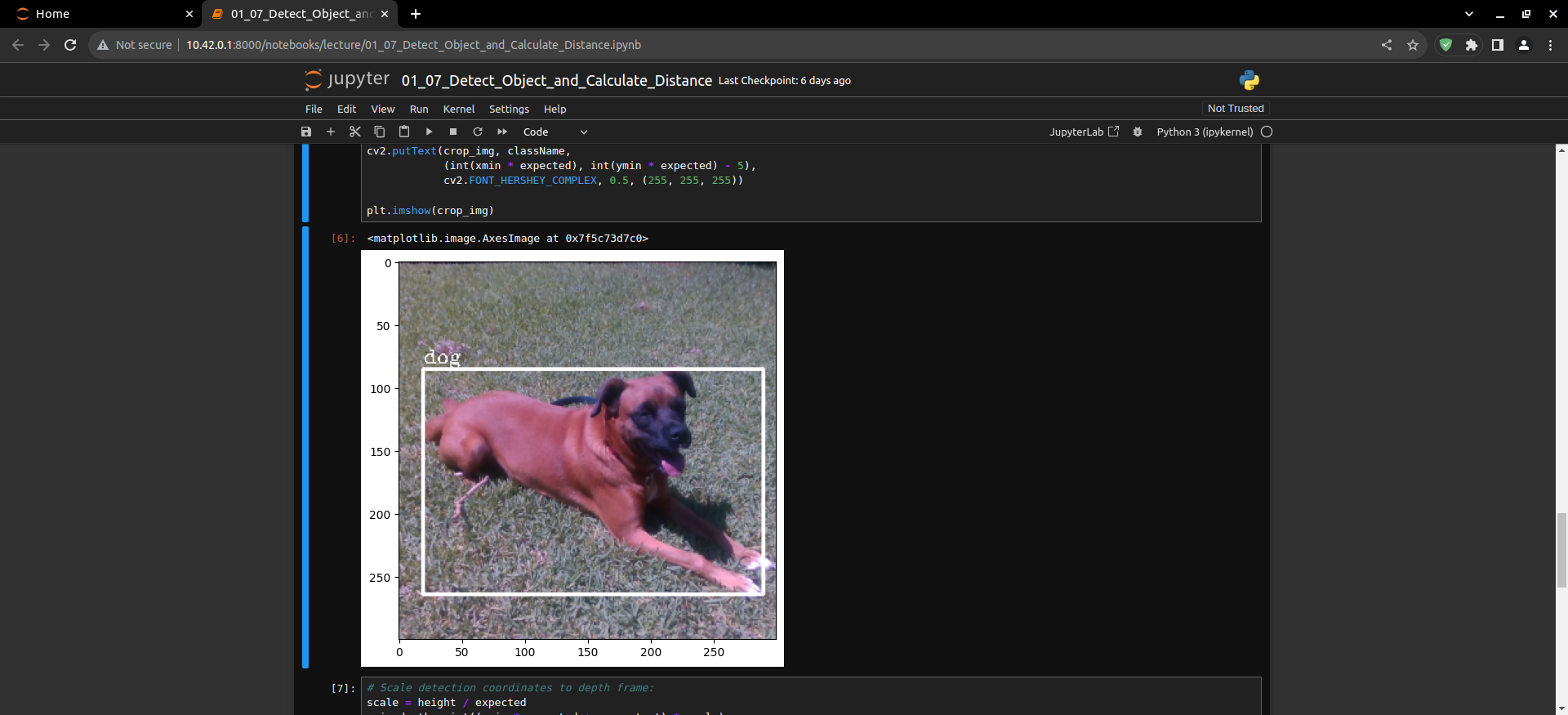

  • Load the model to use SSD-MobileNet and display the detected class.

# Standard OpenCV boilerplate for running the neural network:
height, width = color.shape[:2]
expected = 300
aspect = width / height
resized_image = cv2.resize(color, (round(expected * aspect), expected))
crop_start = round(expected * (aspect - 1) / 2)
crop_img = resized_image[0:expected, crop_start:crop_start+expected]

# Load pre-trained MobileNet SSD model:
net = cv2.dnn.readNetFromCaffe("MobileNetSSD_deploy.prototxt", "MobileNetSSD_deploy.caffemodel")
inScaleFactor = 0.007843
meanVal = 127.53
classNames = ("background", "aeroplane", "bicycle", "bird", "boat",
            "bottle", "bus", "car", "cat", "chair",
            "cow", "diningtable", "dog", "horse",
            "motorbike", "person", "pottedplant",
            "sheep", "sofa", "train", "tvmonitor")

# Preprocess the image for the network:
blob = cv2.dnn.blobFromImage(crop_img, inScaleFactor, (expected, expected), meanVal, False)
net.setInput(blob, "data")
detections = net.forward("detection_out")

# Extract object information from the detection results:
label = detections[0, 0, 0, 1]
conf = detections[0, 0, 0, 2]
xmin = detections[0, 0, 0, 3]
ymin = detections[0, 0, 0, 4]
xmax = detections[0, 0, 0, 5]
ymax = detections[0, 0, 0, 6]
className = classNames[int(label)]

# Draw bounding box and label on the cropped image:
cv2.rectangle(crop_img, (int(xmin * expected), int(ymin * expected)),
            (int(xmax * expected), int(ymax * expected)), (255, 255, 255), 2)
cv2.putText(crop_img, className,
            (int(xmin * expected), int(ymin * expected) - 5),
            cv2.FONT_HERSHEY_COMPLEX, 0.5, (255, 255, 255))

plt.imshow(crop_img)

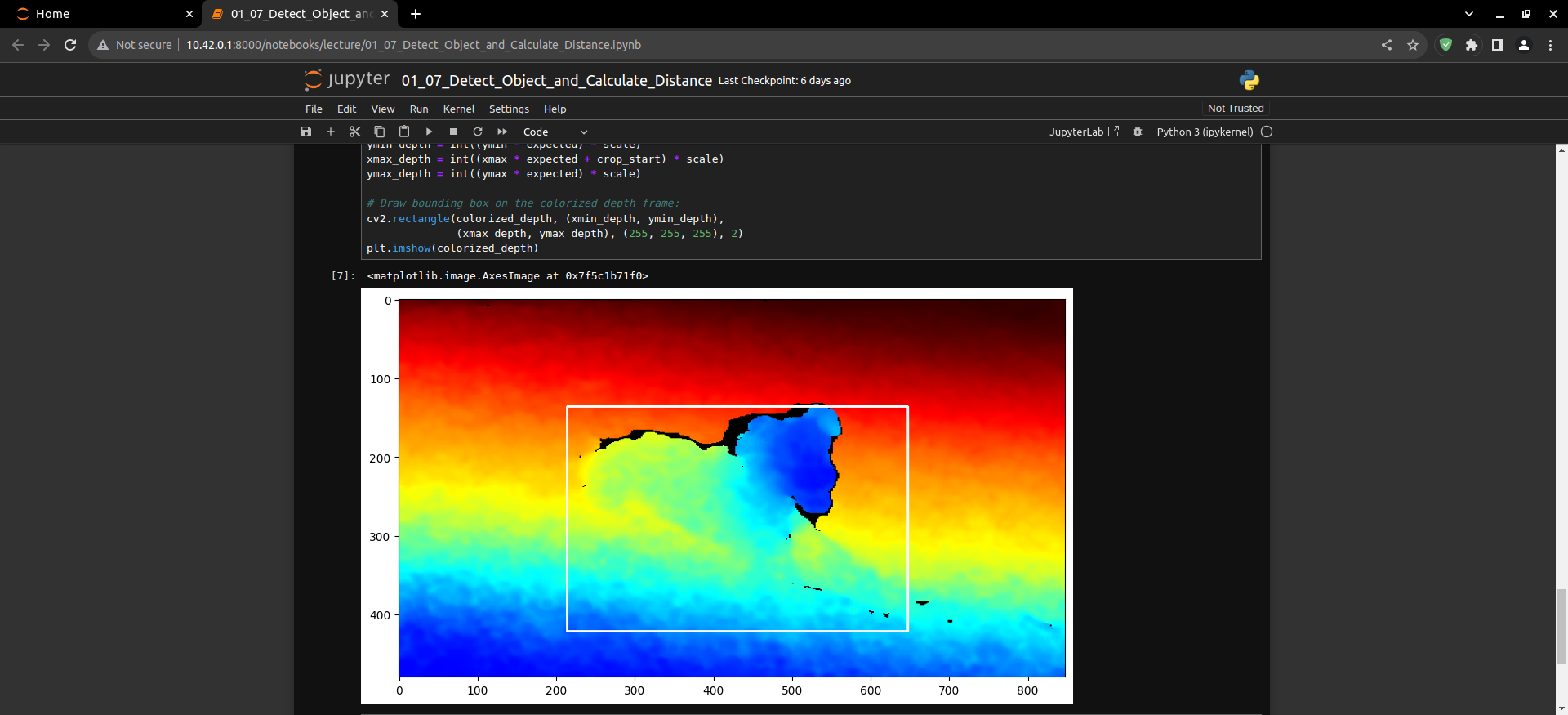

  • Use the depth to guess the size of the detected object.

# Scale detection coordinates to depth frame:
scale = height / expected
xmin_depth = int((xmin * expected + crop_start) * scale)
ymin_depth = int((ymin * expected) * scale)
xmax_depth = int((xmax * expected + crop_start) * scale)
ymax_depth = int((ymax * expected) * scale)

# Draw bounding box on the colorized depth frame:
cv2.rectangle(colorized_depth, (xmin_depth, ymin_depth),
            (xmax_depth, ymax_depth), (255, 255, 255), 2)
plt.imshow(colorized_depth)

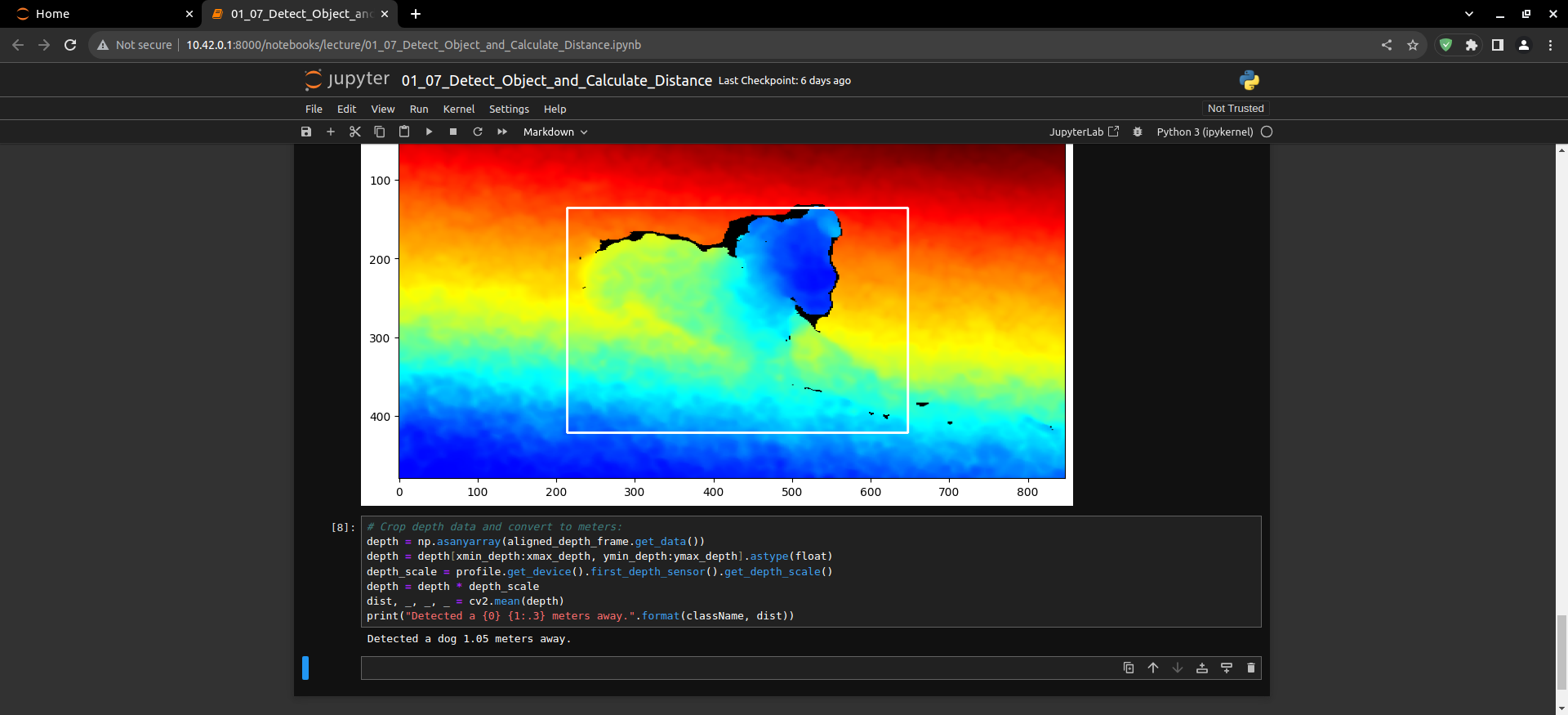

  • Measure the distance of the detected object.

# Crop depth data and convert to meters:
depth = np.asanyarray(aligned_depth_frame.get_data())
depth = depth[xmin_depth:xmax_depth, ymin_depth:ymax_depth].astype(float)
depth_scale = profile.get_device().first_depth_sensor().get_depth_scale()
depth = depth * depth_scale
dist, _, _, _ = cv2.mean(depth)
print("Detected a {0} {1:.3} meters away.".format(className, dist))
